Perl EPO Glider 800

By

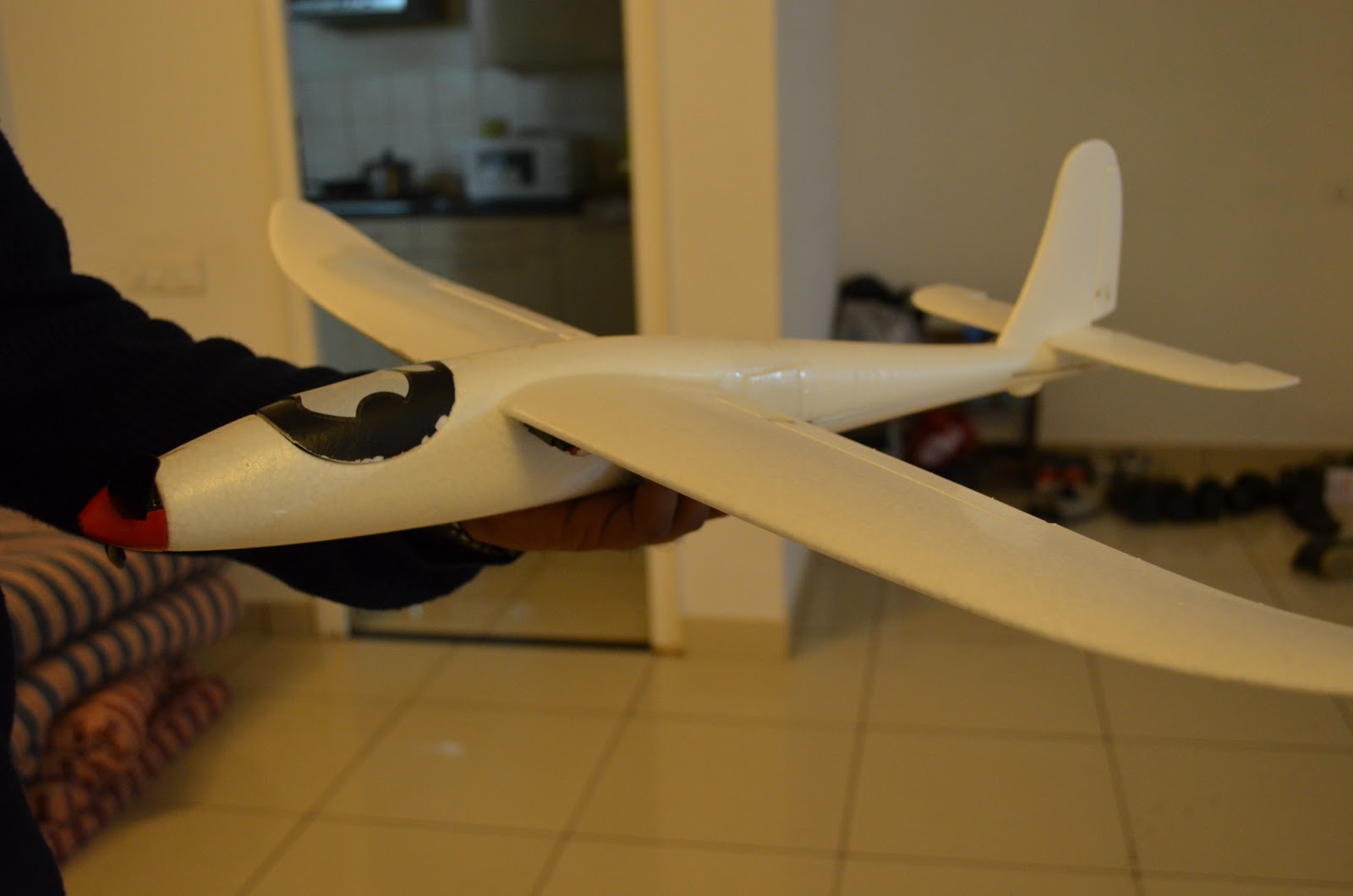

Recently (by that i mean about 2 months ago) brought a glider from www.rchobbyaddict.com. Have finally managed to assemble it.  Here are some pics and a video of the glider. It uses a brush-less DC motor, 4 servo motors, and a 2S1P 800mah battery. Will give detailed specs in a post in one or 2 days after the flight.
